Cable Ladder Systems-Medium Duty

Overview

Use fastener sets for connecting fittings to straight lengths. Rung spacing is 300 mm between centres. Standard radius for fittings is 300 and 600 mm.

Straight Section

Ordering Code	Width	Straight Lengths
	mm	m
CLM150	150	3
CLM300	300	3
CLM450	450	3
CLM600	600	3
CLM750	750	3
CLM900	900	3

Coupler Sets

Note: when connecting straight lengths to straight lengths even when ladder is cut to length, the slots in the coupler will always align with slots in the ladder side rail. When bolting to cut ends adjust coupler to ensure 4 bolts can be inserted.

Coupler sets are supplied in pairs with fasteners (4 per coupler), used to couple straight lengths to straight lengths or fitting to fitting.

Fastener Sets

Comprise M10 coach bolt, flat washer, spring washer and nut. Type: hot dip galvanised/ stainless steel.

Fittings

Flat bends

Ordering Code	Width(W)	Radius(R)	Angle	X	Y	C
	mm	mm	゜	mm	mm	mm
CLMFB15090300	150	300	90	453	453	453
CLMFB15090450	150	450	90	603	603	603
CLMFB15090600	150	600	90	753	753	753
CLMFB15090750	150	750	90	903	903	903
CLMFB15090900	150	900	90	1053	1053	1053
CLMFB30090300	300	300	90	528	528	528
CLMFB30090450	300	450	90	678	678	678
CLMFB30090600	300	600	90	828	828	828
CLMFB30090750	300	750	90	978	978	978
CLMFB30090900	300	900	90	1128	1128	1128
CLMFB45090300	450	300	90	603	603	603
CLMFB45090450	450	450	90	753	753	753
CLMFB45090600	450	600	90	903	903	903
CLMFB45090750	450	750	90	1053	1053	1053
CLMFB45090900	450	900	90	1203	1203	1203
CLMFB60090300	600	300	90	678	678	678
CLMFB60090450	600	450	90	828	828	828
CLMFB60090600	600	600	90	978	978	978
CLMFB60090750	600	750	90	1128	1128	1128
CLMFB60090900	600	900	90	1278	1278	1278
CLMFB75090300	750	300	90	753	753	753
CLMFB75090450	750	450	90	903	903	903

Ordering Code	Width(W)	Radius(R)	Angle	X	Y	C
	mm	mm	゜	mm	mm	mm
CLMFB75090600	750	600	90	1053	1053	1053
CLMFB75090750	750	750	90	1203	1203	1203
CLMFB75090900	750	900	90	1353	1353	1353
CLMFB90090300	900	300	90	828	828	828
CLMFB90090450	900	450	90	978	978	978
CLMFB90090600	900	600	90	1128	1128	1128
CLMFB90090750	900	750	90	1278	1278	1278
CLMFB90090900	900	900	90	1428	1428	1428
CLMFB15045300	150	300	45	400	166	235
CLMFB15045450	150	450	45	506	210	297
CLMFB15045600	150	600	45	612	254	359
CLMFB15045750	150	750	45	719	298	420
CLMFB15045900	150	900	45	825	342	483
CLMFB30045300	300	300	45	453	188	266
CLMFB30045450	300	450	45	559	230	328
CLMFB30045600	300	600	45	665	276	390
CLMFB30045750	300	750	45	722	320	452
CLMFB30045900	300	900	45	878	364	514
CLMFB45045300	450	300	45	506	210	297
CLMFB45045450	450	450	45	612	254	359
CLMFB45045600	450	600	45	719	298	421
CLMFB45045750	450	750	45	825	342	483
CLMFB45045900	450	900	45	931	385	545
CLMFB60045300	600	300	45	559	232	328
CLMFB60045450	600	450	45	665	276	390
CLMFB60045600	600	600	45	772	320	452
CLMFB60045750	600	750	45	878	364	514
CLMFB60045900	600	900	45	984	407	576
CLMFB75045300	750	300	45	612	254	359
CLMFB75045450	750	450	45	719	298	421
CLMFB75045600	750	600	45	825	342	483
CLMFB75045750	750	750	45	931	385	545
CLMFB75045900	750	900	45	1037	429	607
CLMFB90045300	900	300	45	665	276	390
CLMFB90045450	900	450	45	772	320	452
CLMFB90045600	900	600	45	878	364	514
CLMFB90045750	900	750	45	984	407	576
CLMFB90045900	900	900	45	1090	451	638

X = length of fitting from each 'end' of centre-line (not including integral coupler)
Y = length from each 'end' of the fitting to the point at which the centre-lines intersect (not including integral coupler)
C = length of the centre-line from each 'end' of the fitting to the point at which the centre-lines intersect (not including integral coupler)

Risers

60°and 30°bends can be offered upon request.

Ordering Code	Width(W)	Radius(R)	Angle	X	Y	C
	mm	mm	゜	mm	mm	mm
CLMIR15090300	150	300	90	350	350	350
CLMIR15090450	150	450	90	500	500	500
CLMIR15090600	150	600	90	650	650	650
CLMIR15090750	150	750	90	800	800	800
CLMIR15090900	150	900	90	950	950	950
CLMIR30090300	300	300	90	350	350	350
CLMIR30090450	300	450	90	500	500	500
CLMIR30090600	300	600	90	650	650	650
CLMIR30090750	300	750	90	800	800	800
CLMIR30090900	300	900	90	950	950	950
CLMIR45090300	450	300	90	350	350	350
CLMIR45090450	450	450	90	500	500	500
CLMIR45090600	450	600	90	650	650	650
CLMIR45090750	450	750	90	800	800	800
CLMIR45090900	450	900	90	950	950	950
CLMIR60090300	600	300	90	350	350	350
CLMIR60090450	600	450	90	500	500	500
CLMIR60090600	600	600	90	650	650	650
CLMIR60090750	600	750	90	800	800	800

Ordering Code	Width(W)	Radius(R)	Angle	X	Y	C
	mm	mm	゜	mm	mm	mm
CLMIR60090900	600	900	90	950	950	950
CLMIR75090300	750	300	90	350	350	350
CLMIR75090450	750	450	90	500	500	500
CLMIR75090600	750	600	90	650	650	650
CLMIR75090750	750	750	90	800	800	800
CLMIR75090900	750	900	90	950	950	950
CLMIR90090300	900	300	90	350	350	350
CLMIR90090450	900	450	90	500	500	500
CLMIR90090600	900	600	90	650	650	650
CLMIR90090750	900	750	90	800	800	800
CLMIR90090900	900	900	90	950	950	950
CLMIR15045300	150	300	45	247	103	145
CLMIR15045450	150	450	45	354	146	207
CLMIR15045600	150	600	45	460	190	269
CLMIR15045750	150	750	45	566	234	331
CLMIR15045900	150	900	45	673	278	394
CLMIR30045300	300	300	45	247	103	145
CLMIR30045450	300	450	45	354	146	207
CLMIR30045600	300	600	45	460	190	269
CLMIR30045750	300	750	45	566	234	331
CLMIR30045900	300	900	45	673	278	394
CLMIR45045300	450	300	45	247	103	145
CLMIR45045450	450	450	45	354	146	207
CLMIR45045600	450	600	45	460	190	269
CLMIR45045750	450	750	45	566	234	331
CLMIR45045900	450	900	45	673	278	394
CLMIR60045300	600	300	45	247	103	145
CLMIR60045450	600	450	45	354	146	207
CLMIR60045600	600	600	45	460	190	269
CLMIR60045750	600	750	45	566	234	331
CLMIR60045900	600	900	45	673	278	394
CLMIR75045300	750	300	45	247	103	145
CLMIR75045450	750	450	45	354	146	207
CLMIR75045600	750	600	45	460	190	269
CLMIR75045750	750	750	45	566	234	331
CLMIR75045900	750	900	45	673	278	394
CLMIR90045300	900	300	45	247	103	145
CLMIR90045450	900	450	45	354	146	207
CLMIR90045600	900	600	45	460	190	269
CLMIR90045750	900	750	45	566	234	331
CLMIR90045900	900	900	45	673	278	394

CLMIR represents inside riser. CLMIR will be changed to CLMOR if inside riser is changed to outside riser.

Equal tees or 4 way crosspieces

X and Y dimensions are given to assist in the installation of a complete cable ladder run following a centre-line drawing.
X = length of fitting from each ‘end’ of centre-line
Y = length from each ‘end’ of the fitting to the point at which the centerlines intersect

Ordering Code	Width(W)	Radius(R)	Equal Tees Width(X/Y)
	mm	mm	mm
CLMT150300	150	300	454
CLMT150450	150	450	604
CLMT150600	150	600	754
CLMT150750*	150	750	904
CLMT150900*	150	900	1054
CLMT300300	300	300	529
CLMT300450	300	450	679
CLMT300600	300	600	829
CLMT300750*	300	750	979
CLMT300900*	300	900	1129
CLMT450300	450	300	604
CLMT450450	450	450	754
CLMT450600*	450	600	904
CLMT450750*	450	750	1054
CLMT450900*	450	900	1204
CLMT600300	600	300	679

Ordering Code	Width(W)	Radius(R)	Equal Tees Width(X/Y)
	mm	mm	mm
CLMT600450	600	450	829
CLMT600600*	600	600	979
CLMT600750*	600	750	1129
CLMT600900*	600	900	1279
CLMT750300	750	300	754
CLMT750450*	750	450	904
CLMT750600*	750	600	1054
CLMT750750*	750	750	1204
CLMT750900*	750	900	1354
CLMT900300	900	300	829
CLMT900450*	900	450	979
CLMT900600*	900	600	1129
CLMT900750*	900	750	1279
CLMT900900*	900	900	1429

*: Supplied in 2 parts for assembly on site
CLMT represents equal tee. CLMT will be changed to CLMX if equal tee is changed to 4 way crosspiece.

Unequal tees

Ordering Code	Width(W)	Branch(B)	Radius(R)	Unequal Tees Width
				X	Y
	mm	mm	mm	mm	mm
CLMUT150300300	150	300	300	528	453
CLMUT150300450	150	300	450	678	603
CLMUT150300600	150	300	600	828	753
CLMUT150300750*	150	300	750	978	903
CLMUT150300900*	150	300	900	1128	1053
CLMUT150450300	150	450	300	603	453
CLMUT150450450	150	450	450	753	603
CLMUT150450600*	150	450	600	903	753
CLMUT150450750*	150	450	750	1053	903

Ordering Code	Width(W)	Branch(B)	Radius(R)	Unequal Tees Width
				X	Y
	mm	mm	mm	mm	mm
CLMUT150450900*	150	450	900	1203	1053
CLMUT150600300	150	600	300	678	453
CLMUT150600450	150	600	450	828	603
CLMUT150600600*	150	600	600	978	753
CLMUT150600750*	150	600	750	1128	903
CLMUT150600900*	150	600	900	1278	1053
CLMUT150750300	150	750	300	753	453
CLMUT150750450*	150	750	450	903	603
CLMUT150750600*	150	750	600	1053	753
CLMUT150750750*	150	750	750	1203	903
CLMUT150750900*	150	750	900	1353	1053
CLMUT150900300	150	900	300	828	453
CLMUT150900450*	150	900	450	978	603
CLMUT150900600*	150	900	600	1128	753
CLMUT150900750*	150	900	750	1278	903
CLMUT150900900*	150	900	900	1428	1053
CLMUT300150300	300	150	300	453	528
CLMUT300150450	300	150	450	603	678
CLMUT300150600	300	150	600	753	828
CLMUT300150750*	300	150	750	903	978
CLMUT300150900*	300	150	900	1053	1128
CLMUT300450300	300	450	300	603	528
CLMUT300450450	300	450	450	753	678
CLMUT300450600*	300	450	600	903	828
CLMUT300450750*	300	450	750	1053	978
CLMUT300450900*	300	450	900	1203	1128
CLMUT300600300	300	600	300	678	528
CLMUT300600450	300	600	450	828	678
CLMUT300600600*	300	600	600	978	828
CLMUT300600750*	300	600	750	1128	978
CLMUT300600900*	300	600	900	1278	1128
CLMUT300750300	300	750	300	753	528
CLMUT300750450*	300	750	450	903	678
CLMUT300750600*	300	750	600	1053	828
CLMUT300750750*	300	750	750	1203	978
CLMUT300750900*	300	750	900	1353	1128
CLMUT300900300	300	900	300	828	528
CLMUT300900450*	300	900	450	978	678
CLMUT300900600*	300	900	600	1128	828
CLMUT300900750*	300	900	750	1278	978
CLMUT300900900*	300	900	900	1428	1128
CLMUT450150300	450	150	300	453	603
CLMUT450150450	450	150	450	603	753

Ordering Code	Width(W)	Branch(B)	Radius(R)	Unequal Tees Width
				X	Y
	mm	mm	mm	mm	mm
CLMUT450150600	450	150	600	753	903
CLMUT450150750*	450	150	750	903	1053
CLMUT450150900*	450	150	900	1053	1203
CLMUT450300300	450	300	300	528	603
CLMUT450300450	450	300	450	678	753
CLMUT450300600*	450	300	600	828	903
CLMUT450300750*	450	300	750	978	1053
CLMUT450300900*	450	300	900	1128	1203
CLMUT450600300	450	600	300	678	603
CLMUT450600450	450	600	450	828	753
CLMUT450600600*	450	600	600	978	903
CLMUT450600750*	450	600	750	1128	1053
CLMUT450600900*	450	600	900	1278	1203
CLMUT450750300	450	750	300	753	602
CLMUT450750450*	450	750	450	903	753
CLMUT450750600*	450	750	600	1053	903
CLMUT450750750*	450	750	750	1203	1053
CLMUT450750900*	450	750	900	1353	1203
CLMUT450900300	450	900	300	828	603
CLMUT450900450*	450	900	450	978	753
CLMUT450900600*	450	900	600	1128	903
CLMUT450900750*	450	900	750	1278	1053
CLMUT450900900*	450	900	900	1428	1203
CLMUT600150300	600	150	300	453	678
CLMUT600150450	600	150	450	603	828
CLMUT600150600	600	150	600	753	978
CLMUT600150750*	600	150	750	903	1128
CLMUT600150900*	600	150	900	1053	1278
CLMUT600300300	600	300	300	528	678
CLMUT600300450	600	300	450	678	828
CLMUT600300600*	600	300	600	828	978
CLMUT600300750*	600	300	750	978	1128
CLMUT600300900*	600	300	900	1128	1278
CLMUT600450300	600	450	300	603	678
CLMUT600450450	600	450	450	753	828
CLMUT600450600*	600	450	600	903	978
CLMUT600450750*	600	450	750	1053	1128
CLMUT600450900*	600	450	900	1203	1278
CLMUT600750300	600	750	300	753	678
CLMUT600750450*	600	750	450	903	828
CLMUT600750600*	600	750	600	1053	978
CLMUT600750750*	600	750	750	1203	1128
CLMUT600750900*	600	750	900	1353	1278

Ordering Code	Width(W)	Branch(B)	Radius(R)	Unequal Tees Width
				X	Y
	mm	mm	mm	mm	mm
CLMUT600900300	600	900	300	828	678
CLMUT600900450*	600	900	450	978	828
CLMUT600900600*	600	900	600	1128	978
CLMUT600900750*	600	900	750	1278	1128
CLMUT600900900*	600	900	900	1428	1278
CLMUT750150300	750	150	300	453	753
CLMUT750150450	750	150	450	603	903
CLMUT750150600	750	150	600	753	1053
CLMUT750150750*	750	150	750	903	1203
CLMUT750150900*	750	150	900	1053	1353
CLMUT750300300	750	300	300	528	753
CLMUT750300450	750	300	450	678	903
CLMUT750300600*	750	300	600	828	1053
CLMUT750300750*	750	300	750	978	1203
CLMUT750300900*	750	300	900	1128	1353
CLMUT750450300	750	450	300	603	753
CLMUT750450450	750	450	450	753	903
CLMUT750450600*	750	450	600	903	1053
CLMUT750450750*	750	450	750	1053	1203
CLMUT750450900*	750	450	900	1203	1353
CLMUT750600300	750	600	300	678	753
CLMUT750600450*	750	600	450	828	903
CLMUT750600600*	750	600	600	978	1053
CLMUT750600750*	750	600	750	1128	1203
CLMUT750600900*	750	600	900	1278	1353
CLMUT750900300	750	900	300	828	753
CLMUT750900450*	750	900	450	978	903
CLMUT750900600*	750	900	600	1128	1053
CLMUT750900750*	750	900	750	1278	1203
CLMUT750900900*	750	900	900	1428	1353
CLMUT900150300	900	150	300	453	828
CLMUT900150450	900	150	450	603	978
CLMUT900150600	900	150	600	753	1128
CLMUT900150750*	900	150	750	903	1278
CLMUT900150900*	900	150	900	1053	1428
CLMUT900300300	900	300	300	528	828
CLMUT900300450	900	300	450	678	978
CLMUT900300600*	900	300	600	828	1128
CLMUT900300750*	900	300	750	978	1278
CLMUT900300900*	900	300	900	1128	1428
CLMUT900450300	900	450	300	603	828
CLMUT900450450	900	450	450	753	978
CLMUT900450600*	900	450	600	903	1128

Ordering Code	Width(W)	Branch(B)	Radius(R)	Unequal Tees Width
				X	Y
	mm	mm	mm	mm	mm
CLMUT900450750*	900	450	750	1053	1278
CLMUT900450900*	900	450	900	1203	1428
CLMUT900600300	900	600	300	678	828
CLMUT900600450*	900	600	450	828	978
CLMUT900600600*	900	600	600	978	1128
CLMUT900600750*	900	600	750	1128	1278
CLMUT900600900*	900	600	900	1278	1428
CLMUT900750300	900	750	300	753	828
CLMUT900750450*	900	750	450	903	978
CLMUT900750600*	900	750	600	1053	1128
CLMUT900750750*	900	750	750	1203	1278
CLMUT900750900*	900	750	900	1353	1428

*: Supplied in 2 parts for assembly on site

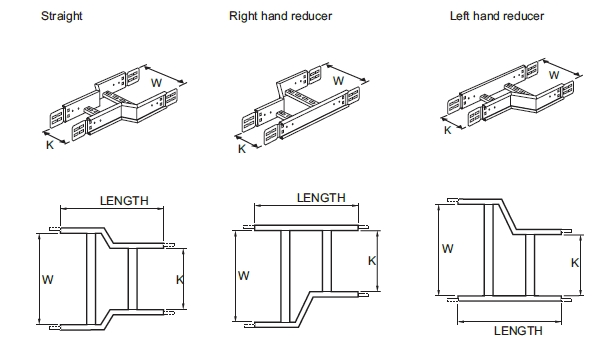

Reducers

Ordering Code	Width(W)	Width(K)	Straight Reducer Length	Offset Reducer Length
	mm	mm	mm	mm
CLMSR300150	300	150	450	450
CLMSR450150	450	150	450	450
CLMSR450300	450	300	450	450
CLMSR600150	600	150	500	550
CLMSR600300	600	300	450	500
CLMSR600450	600	450	450	450
CLMSR750150	750	150	500	600
CLMSR750300	750	300	500	550
CLMSR750450	750	450	450	500
CLMSR750600	750	600	450	450
CLMSR900150	900	150	550	650

Ordering Code	Width(W)	Width(K)	Straight Reducer Length	Offset Reducer Length
	mm	mm	mm	mm
CLMSR900300	900	300	500	600
CLMSR900450	900	450	500	550
CLMSR900600	900	600	450	500
CLMSR900750	900	750	450	450

CLMSR represents straight reducer. CLMSR will be changed to CLMLR if straight reducer is changed to left hand offset reducer. CLMSR will be changed toCLMRR if straight reducer is changed to right hand offset reducer.

Loading Graphs

The loads shown on the graph are the safe recommended maximum loads that can be applied and must include wind, snow and any other external forces in addition to the cable load. The graphs show the maximum load for ladder installed at a support spacing within its recommended range. When the graph line is above the intersection of the required load and span lines, the support equipment is suitable for use within those load and span conditions. The graphs shown are for galvanised and deep galvanised finishes.
